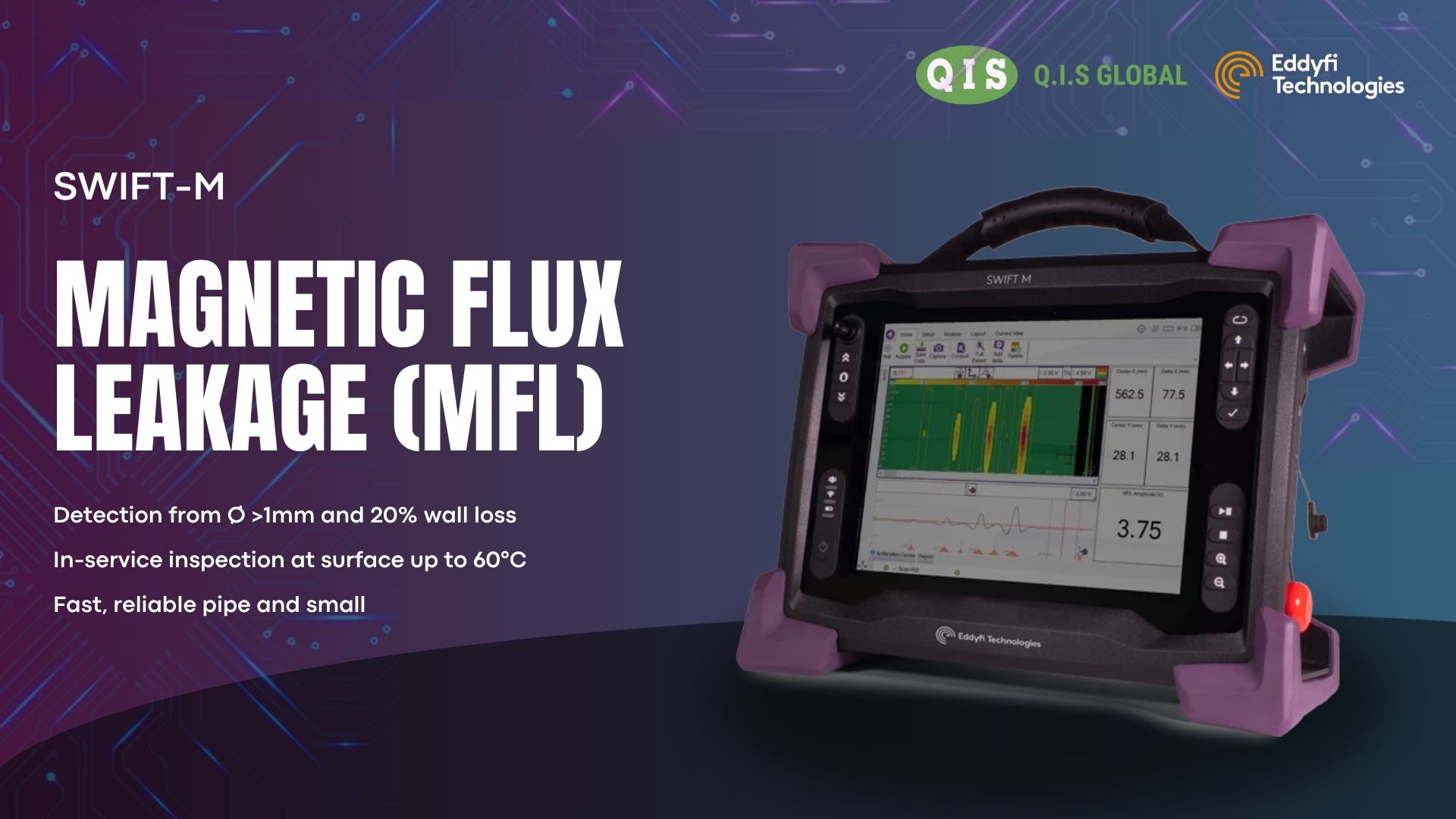

Swift-M is an advanced MFL (Magnetic Flux Leakage) data acquisition system from Eddyfi Technologies, designed to deliver fast and accurate corrosion mapping for pipelines and metallic assets across various industries.

The system utilizes MFL technology to magnetize the steel material of pipelines. When material loss due to corrosion occurs, the magnetic field leaks from the surface and is detected by highly sensitive sensors. This enables inspectors to precisely identify the location, size, and severity of wall thickness loss.

Swift-M allows high-speed scanning (up to approximately 1 m/s), significantly reducing inspection time compared to many conventional inspection methods. The system does not require couplant and requires minimal surface preparation, allowing rapid deployment directly in the field.

Key Features of Swift-M

Advanced MFL technology for detecting metal loss, pitting, and corrosion areas on steel pipelines.

High scanning speed enabling large-area inspections in a shorter time.

10.4” multi-touch display for clear and intuitive data visualization in the field.

Real-time corrosion mapping capability to support fast asset condition assessment.

Rugged design with IP65 protection, suitable for harsh industrial environments.

Compatible with scanner systems such as PipeScan HD for detailed C-Scan corrosion mapping.

Swift-M is an ideal solution for inspection applications in oil & gas pipelines, industrial equipment, storage tanks, piping systems, refineries, and other heavy industries, where fast, accurate, and reliable NDT inspections are essential.

QIS – Representative of Eddyfi Technologies in Vietnam, providing complete solutions from technical consultation and equipment supply to implementation support and operator training.
